2inch Hydraulic Hose Crimping Machine 1/4

Overview

Basic Info.

Model NO.	MJ53
Structure	Vertical
Scale Accuracy	0.01mm
Operational Way	Foot Control, Button Control and Automatic
Oil Pump	2.5L, 5L or Customize 10L
Dies Number	15 19 23 26 31 36 41 47 55 63 or Customize
Dimension	L 870*W 670*H 1420 mm
Free Dies	10sets
Gross Weight	320kg
Max Opening	116mm
Power	3kw or Customize 4kw/5.5kw
Crimping Force	560t
Crimping Range	1/4-2′′ 6-51mm
Crimp Od Range	4-80mm
Name	Hydraulic Hose Crimping Machine
Transport Package	Plywood Box or as Buyer Required
Specification	1/4-2′′
Trademark	MJhyd
Origin	Tianjin, China
Production Capacity	500sets Per Month

Product Description

Product Description

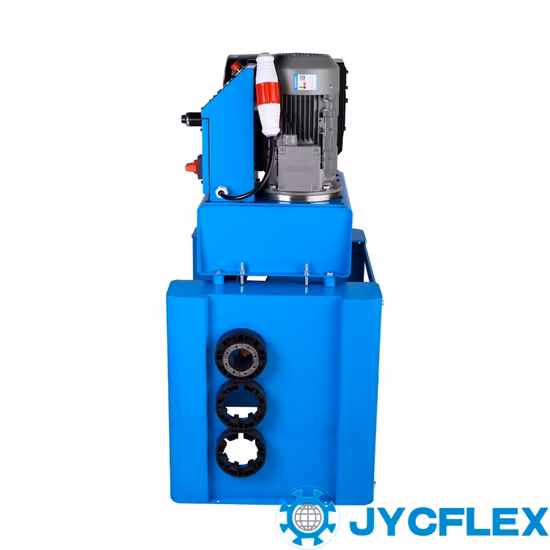

MJ53 Hydraulic Hose Crimping Machine
This hose crimping machine can press inner diameter 1/8-2'' 1-4steel wire hydraulic hose, up to 2'' 4wire hose one time.
MJ53 is automtiac machine, including 10 sets dies, 3KW motor power, dies locker and work light.
MJ53 is vertical machine, dies table about 1.35 meter,very convenient for operation.

Features

1.Efficient, fast pump2.Dies table3.Can customize quick change tool4.Precision control device,equipped with signal lamp5.Automatic/ button/ foot pedal control operated6. CE ISO certification

Product Parameters

Crimping inner diameter	1/4-2inch or 3-51mm, 1-4steel wire
Crimp outside diameter	6-80mm
Max opening	116mm
Crimping force	560T
Power of motor	3KW/4KW or customize
Scale accuracy	0.01mm
Oil pump out-let quantity	2.5L, 5L or customize 10L
Rated pressure	31.5MPA
Voltage	220V/12V/380v/415v or customize
Operational way	foot control, button control, automatic
Dies mould	10sets
Dies number	15. 19. 23. 26. 31. 36. 41. 47. 55. 63 or customize
Extra parts	Work light, oil seal and so on

Product Show

Custom service: according to your stuff pressed, make suitable dies pattern and machine for you

Options: In addition to the standard die sets, a wide range of special die sets for different diameters, lengths and forms is available. Because the number of pictures displayed is limited, if the picture above does not find the model you want to press, please contact customer service immediately, and we will give you the most professional answer

Custom Design

1. Any color can be customized; 2. Can specify the brand of machine parts, such as Siemens motors;3. Molds can be customized in different models; 4. Can customize customer's own logo and machine OEM
